Bx-Lite

Embryo Biopsy and Tubing Simplified!

Visit us atASRM2026

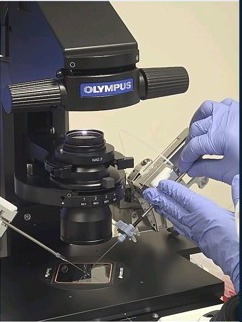

Embryologist loading a biopsy tube at an Olympus microscope
2.5 million
global IVF cases annually.
40% or more
advance to embryo biopsies.
The Goal

Help patients escape chromosomal aneuploidies and monogenic disorders.

The Problem

  1. 1The ritual of preloading biopsy tubes.
  2. 2Shaky hands during tube loading.
  3. 3Obscured vision during tube loading.
  4. 4Ghosted piece lost during wash to media, oil or tube wall.
  5. 5Rebiopsy wait time and invasiveness.

Our Solution

  • Automated embryo-biopsy assembly with existing instrumentation.
  • Designed to optimize embryology workflows.
  • Removes the complexity from the most advanced competency requirement in embryology.
From Idea to Patent
1

Ideation

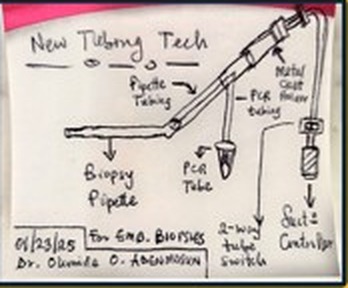

Original hand sketch of the tubing technique

Original sketch, 01/23/25

2

Engineering & Refinement

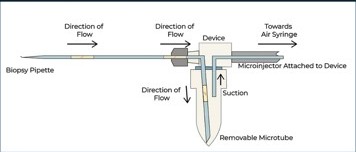

Engineering diagram of biopsy pipette, device, microinjector and removable microtube

Biopsy pipette, device, microinjector and removable microtube

3

Patent Filed

Notice of provisional patent application filed with the USPTO

Provisional application filed with the USPTO

Three Microinjector Types Tested

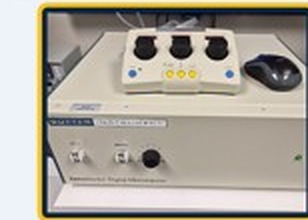

Digital Microinjector by Sutter Instrument (XenoWorks)

Digital Microinjector by Sutter Instrument (XenoWorks)

Pneumatic Air Microinjector by Research Instruments

Pneumatic Air Microinjector by Research Instruments

Pneumatic Air Microinjector by Narishige

Pneumatic Air Microinjector by Narishige

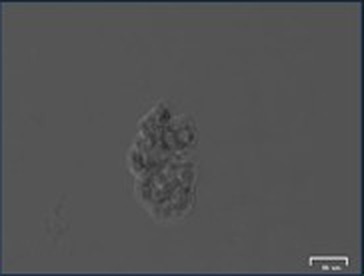

Brightfield microscopy of the recovered biopsy piece
Brightfield

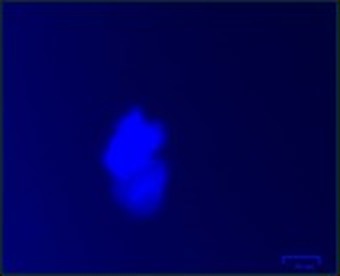

Hoechst 33342 nuclear staining of the recovered cells
Hoechst 33342 (nuclear staining)

Narishige outcome: recovery of mouse TE cells from the biopsy tubing device

Outcomes

  • Successful auto-tubing of biopsy piece.
  • Assessment and confirmation of biopsy piece by fluorescent and bright-field microscopy.
Future Directions

Approvals

Secure CE marking and FDA approvals for IVD use.

Distribution

Set up a global sales network.

Licensing

License to existing behemoths in the field (e.g. Vitrolife/Igenomix, Conceivable Life Sciences, Cooper, etc.).

The Inventors
Dr. Olumide Adenmosun

Dr. Olumide Adenmosun

Licensed Clinical Embryologist and Program Manager, A.R.T. at FAU

Lead Inventor: Biopsy Tubing Device

Dr. Waseem Asghar

Dr. Waseem Asghar

Professor and Associate Chair, Biomedical Engineering at FAU

Prominent Past Invention: Zymot Sperm Separation Device

Omair Faqah

Omair Faqah

PhD Candidate, Biomedical Engineering at FAU

Invention Role: 3D design, printing and optimization of biopsy device

QR code linking to the Bx-Lite YouTube demo

Scan to watch Bx-Lite in action

YouTube

Contact

Dr. Olumide O. Adenmosun

oadenmos@fau.edu

3200 College Ave, Davie FL 33314 ยท Room DW437

Florida Atlantic University

Dr. Olu will be at ASRM 2026 (Maryland)

to share more details about the Bx-Lite device.

Interested in a future Beta test? Complete the form from this QR code.

QR code for the Bx-Lite beta test interest form
